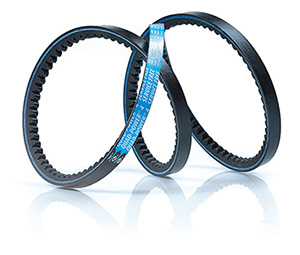

By using innovative minimal-stretch cord technology, Gates Quad-Power 4 bandless V-belts are free of maintenance. Unlike conventional belts, the Quad-Power 4 V-belt does not suffer from severe tension decay in the first hours after installation. So no run-in period nor any re-tensioning are required. This new generation of SERVICE FREE EPDM belts are designed to extend product life time eliminating costly downtime for re-tensioning, repair and replacement.
CONSTRUCTION
Minimal-elongation polyester tensile cords allow for stable tension over the entire lifetime.
Blue adhesion layer for an extra strong bonding of the tensile cords and the rubber compound.
Optimized notch form for reduced bending stress and improved efficiency.
New generation EPDM rubber compound to ensure a long service life and a wear-resistant belt under extreme temperatures.
BENEFITS
Energy efficiencies up to 98%.
Less downtime.
Fewer replacements.
Higher performance.
Wider temperature range.
Halogen-free belt.
A clear branding for ease of identification.
Perfect fit on standard ISO/DIN V-pulleys and 3VX/5VX for RMA pulley grooves.
REACH and RoHS 2 compliant.
Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching.
Temperature range: -50°C to +130°C.
