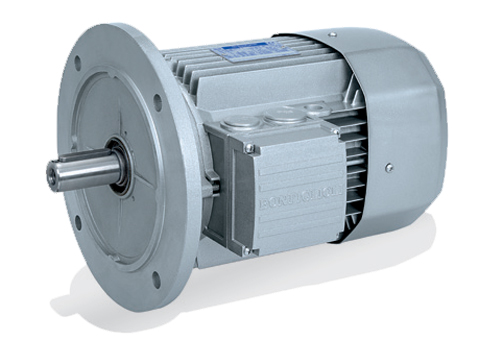

New range of Bonfiglioli high efficency IE2 AC motors. The IEC-normalized BE motors comply with IEC 60034- 30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV Directives.
They are available in the 0.75 – 22 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Finally, all motors are inverter duty.
Power Range (4 pole)
0.75 kW … 22 kW
Frame Sizes
80B … 180L
Pole Numbers
2, 4, 6
Mounting Options
Foot IM B3
Flange IM B5 and IM B14
Bonfiglioli high efficency IE2 AC motors
Operation
50 Hz e 60 Hz
Compliance
IEC 60034-30:2008 (IE),
2006/95/EC (LVD) and 2004/108/EC (EMC)
Inverter Duty
All frame sizes
Housing
Cast aluminium
Main Options
Thermistors and thermostates sensors
Separate supply forced ventilation
Line driver and push-pull incremental encoder
CSA and UL approved design
